bme680

Example implementation of BME680 software. The I2C/SPI drivers are meant to run on a Raspberry Pi 4.

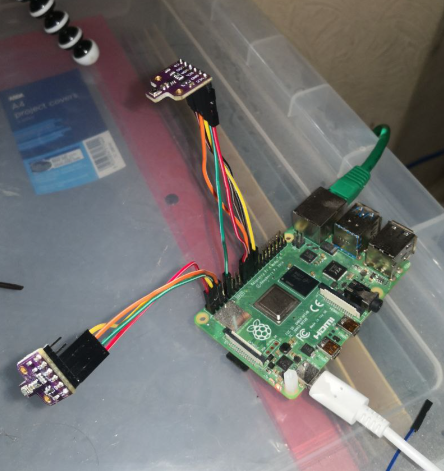

Connecting the purple BME680 module board to SPI:

SPI func	BME680 Pin	Raspberry Pi Pin
MISO	"SDO"	GPIO 9 (Pin 21)
MOSI	"SDA"	GPIO 10 (Pin 19)
SCLK	"SCL"	GPIO 11 (Pin 23)
CS	"CS"	GPIO 8 (Pin 24)

build

$ make

This will create demo programs bme680_i2c and bme680_spi, and logging programs bme680_log_i2c and bme680_log_spi. They all expect the pin/devices specified in spi.c and i2c.c.

The loggers spit out the following every minute:

2024-08-19T18:20:00+0100 22.2358 101068 65.8092 11054.4 1

Date, Temperature °C, Pressure Pa, % RH, Measured Gas resistance Ω, Heat stability bit

Note: disregard measured gas resistance if the heat stability bit is not 1.

spi demo

par_t1: 26203
par_t2: 26519
par_t3: 3
par_p1: 35008
par_p2: -10284
par_p3: 88
par_p4: 9692
par_p5: -202
par_p6: 30
par_p7: 24
par_p8: -4
par_p9: -3469
par_p10: 30
par_h1: 794
par_h2: 1007
par_h3: 0
par_h4: 45
par_h5: 20
par_h6: 120
par_h7: -100
par_g1: 208
par_g2: 59781
par_g3: 18
range_switching_error: 19
res_heat_range: 1
res_heat_val: 46
float mode
tfine: 104906.162500
temp: 20.489485 degC
press: 100089.609193 Pa
humidity: 64.456540 % RH
gas resistance: 12100.310308 Ohm
== for heater target=300.0 and ambient temp=19.0 (degC)
=== gas_valid_r: 1
=== heat_stab_r: 1

i2c demo

par_t1: 26125
par_t2: 26370
par_t3: 3
par_p1: 36262
par_p2: -10371
par_p3: 88
par_p4: 6713
par_p5: -103
par_p6: 30
par_p7: 31
par_p8: -251
par_p9: -3158
par_p10: 30
par_h1: 776
par_h2: 1010
par_h3: 0
par_h4: 45
par_h5: 20
par_h6: 120
par_h7: -100
par_g1: 183
par_g2: 59281
par_g3: 18
range_switching_error: 19
res_heat_range: 1
res_heat_val: 39
float mode
tfine: 97289.819111
temp: 19.001918 degC
press: 100226.479673 Pa
humidity: 67.022216 % RH
gas resistance: 14702.868852 Ohm
== for heater target=300.0 and ambient temp=19.0 (degC)
=== gas_valid_r: 1
=== heat_stab_r: 1

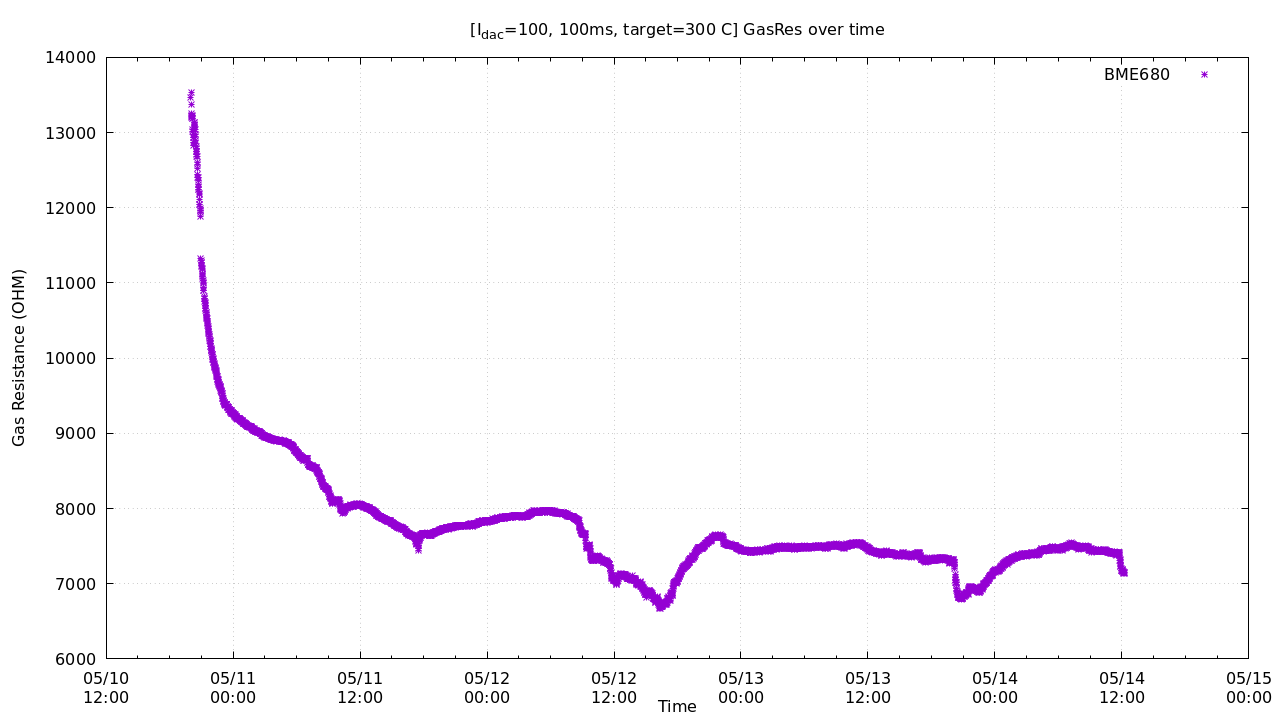

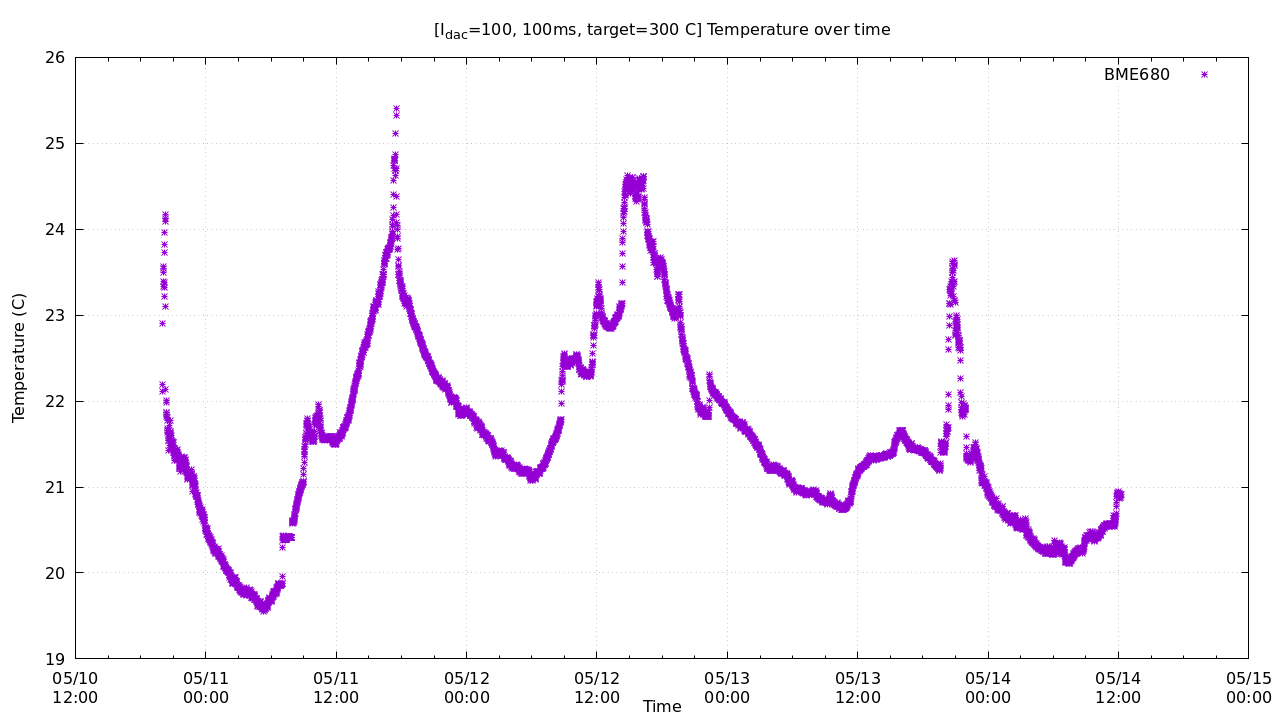

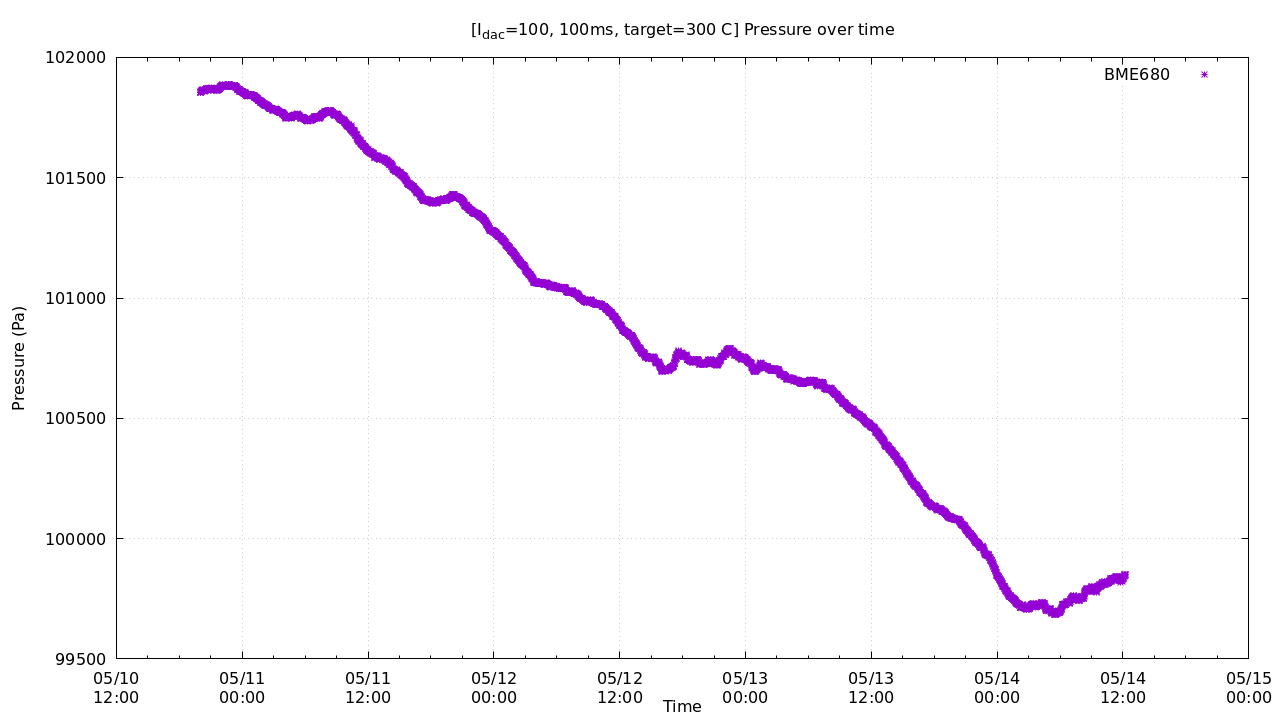

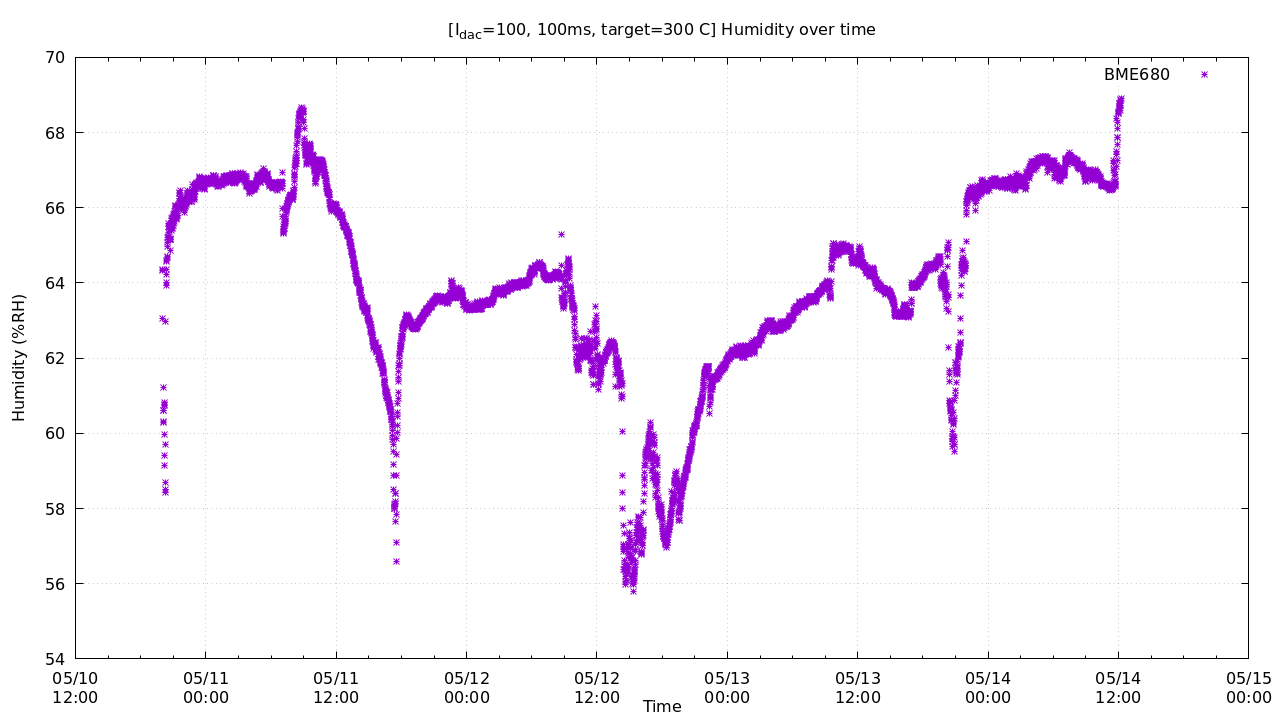

Burn-in / logging

See file example/log.c

Compile and run

$ stdbuf -o0 ./bme680_log_i2c 2>&1 | tee -a data/i2c.txt &
$ stdbuf -o0 ./bme680_log_spi 2>&1 | tee -a data/spi.txt &
# wait a couple of hours or days ..
$ cd plot
$ ./plot.sh
